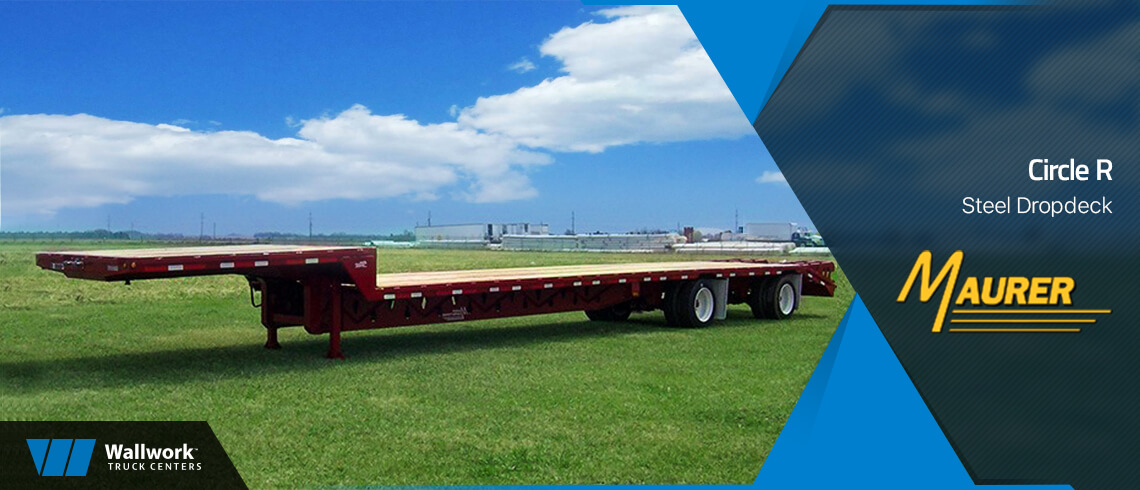

CIRCLE R Drop Deck Trailers

The Right Choice For All Your Hauling Needs

Maurer drop deck trailers offer a multitude of hauling solutions that our customers demand.

  • 22,500 lb Tandem axles w/ ABS brakes (single axle) and 10 bolt hub piloted rims.
  • 25,000 lb Triple axles w/ABS brakes (single axle) and 10 bolt hub piloted rims.
  • 3-Leaf heavy duty spring suspension.
  • Tri-Axle has standard Air Ride Suspension - Holland Neway.
  • Spring assist for trailers with ramps.
  • Stake pockets and pipe spooling at 9" intervals.
  • Rub rail of 2'x3/8' flat steel.
  • Holland Atlas 55 series with 2 speed landing gear.
  • Exterior mating surfaces are caulked prior to paint to prevent rust.
  • Hand sanded/Phosphate washed for superior paint adhesion.
  • Polyurethane primer w/ Polyurethane paint (std.color-Black).
  • Sealed wiring system w/ 7-way receptacle- Designed by Trucklite for Maurer.
  • D.O.T. approved conspicuity tape and rubber mounted lights.
  • Color coded brake lines.
  • WinchTrack.
  • Manifest holder.
  • Anti-sail mudflaps (Maurer logo).
  • Apitong flooring 1 1/8” x 7”.
  • Rubber mounted LED lights.
  • Gross Vehicle Weight Rating (GVWR) of 68,000 lbs.
  • Gross Vehicle Weight Rating (GVWR) for Tri-Axle of 77,500 lbs.
  • Main beams designed with camber and built in the Maurer facility: Web- 1/4" high grade 100,000 yield steel. Flange- 3/8'x5" high grade 100,000 yield steel.
  • Cross members of 4"x3.2# 80,000 yield jr. I-beam on 16" centers.
  • Side rails of 6"x8.2# structural C Channel.
  • Brake size of 16.5"x7".
  • Kingpin setting of 24".
  • Upper deck length of 11'.
  • Transition drop of 19.5" between decks.
  • 102" overall width.
